Red ring

Location: NEVADA, U.S.A.
Mineral: Copper & gOLD
Optioned to: Azucar Minerals

Latest News:

May 1st, 2025
Almadex Announces Option-Joint Venture Agreement on Three Nevada Properties with Azucar Minerals Ltd.

April 15th, 2025
Almadex Provides Exploration Update on its Confusion Hills and Red Ring Gold Projects, Nevada, Surface Sampling returns 7.1 g/t Gold

Overview

The Red Ring Property covers a 2.8 by 1.5 km area of intense hydrothermal alteration characteristic of a porphyry-epithermal lithocap environment.

The project is located on BLM land consists of 90 unpatented claims. These claims were staked by Almadex in 2023 as part of its U.S.A generative exploration program. Azucar has entered into an Option-Joint Venture agreement with Almadex to acquire 60% interest in the Property.

LOCATION

The Property is located in Nye County, Nevada, approximately 125 km northeast of the town of Tonopah, and 90 km east of Kinross’ Round Mountain gold mine.

Geology

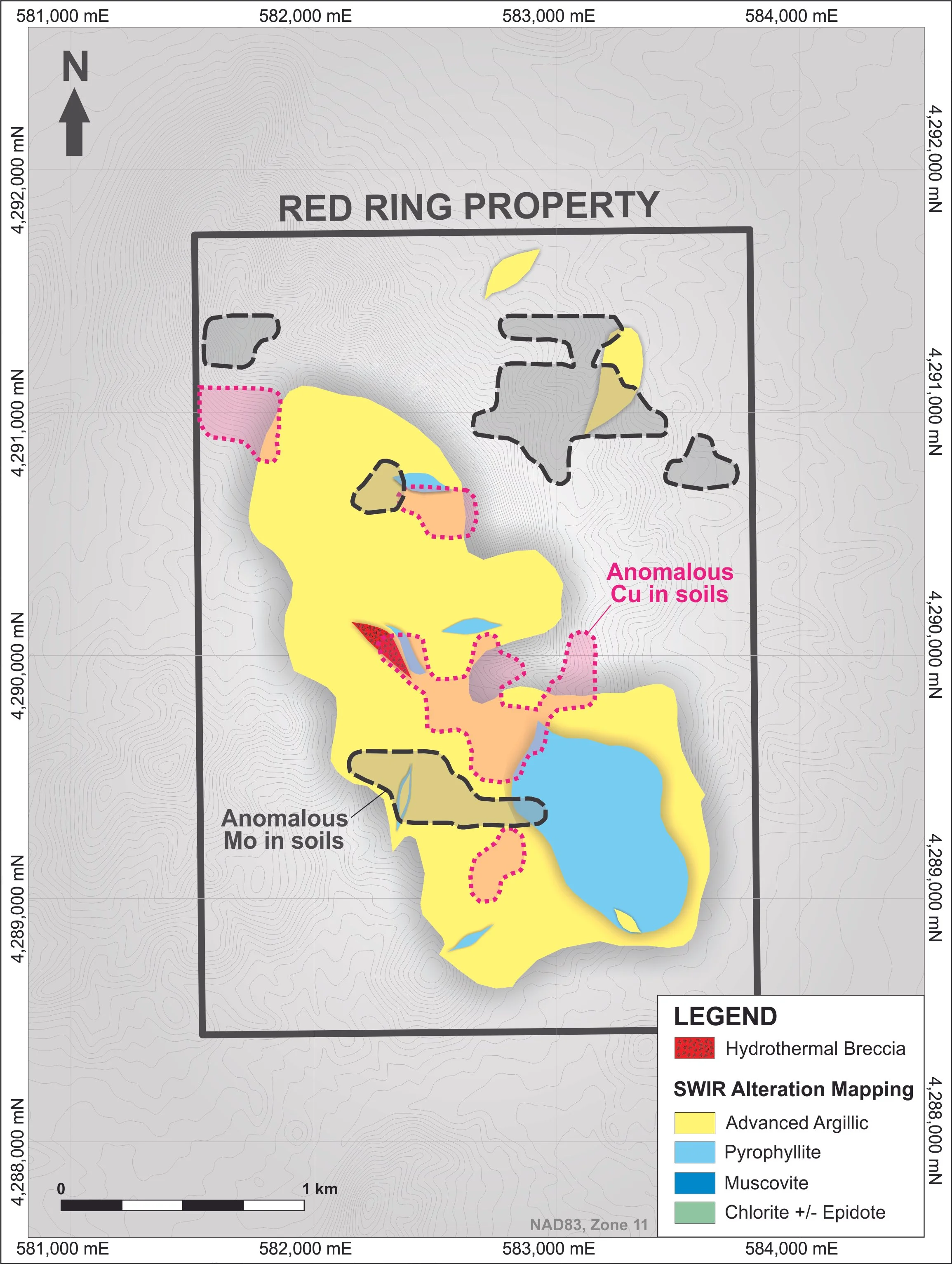

The Red Ring prospect is being explored for high-sulphidation epithermal gold and porphyry copper-gold mineralization. The prospect is defined by a high-sulphidation epithermal lithocap interpreted to overlie potential porphyry mineralization at depth. The lithocap occurs in volcanic rocks adjacent to carbonate rocks and trends northwest for roughly 2.8 km and spans up to 1.5 km in width. Within this broad alteration zone lies a well-developed surface pyrophyllite footprint measuring approximately 1 km in a northwest direction and is 0.5 km wide..

Exploration:

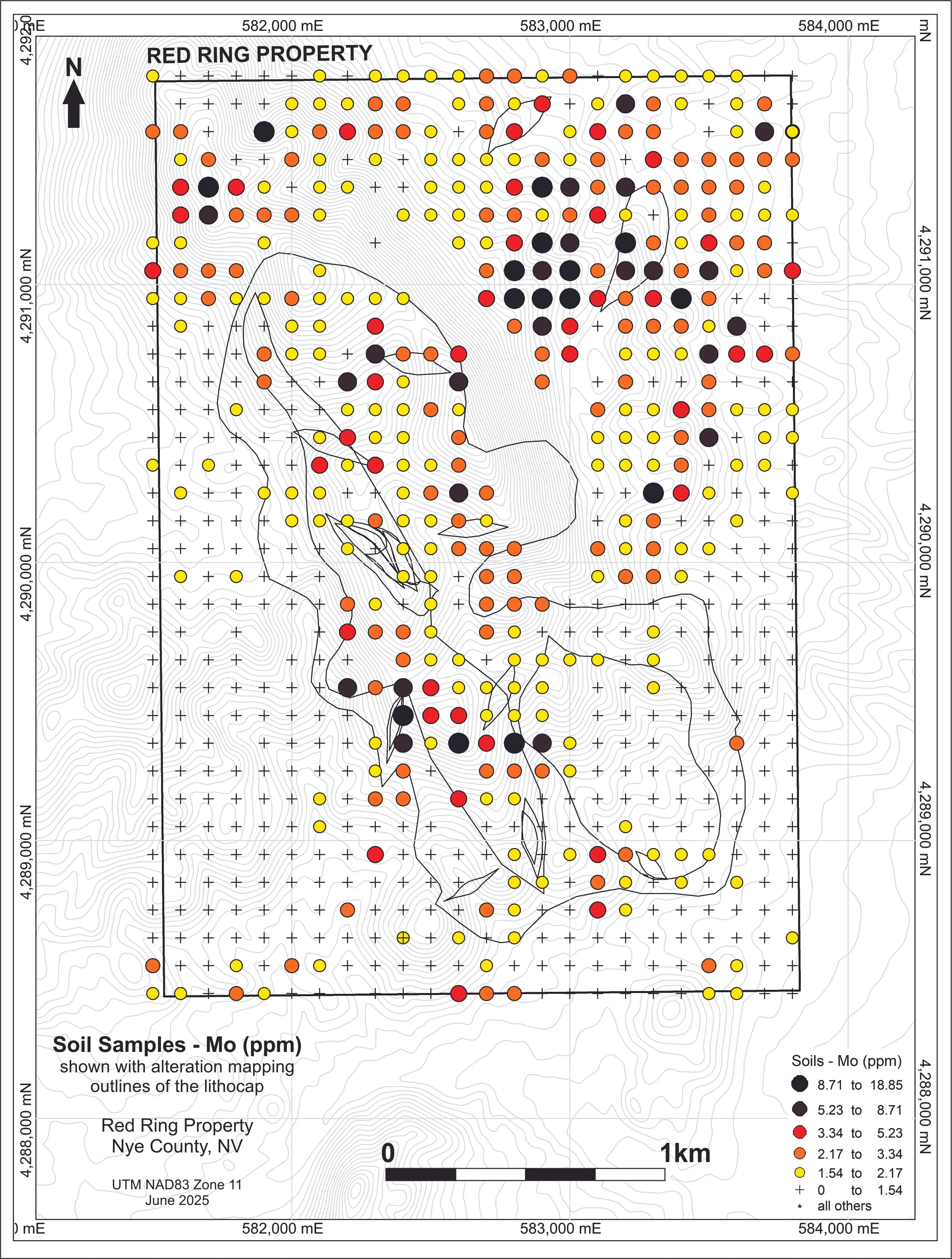

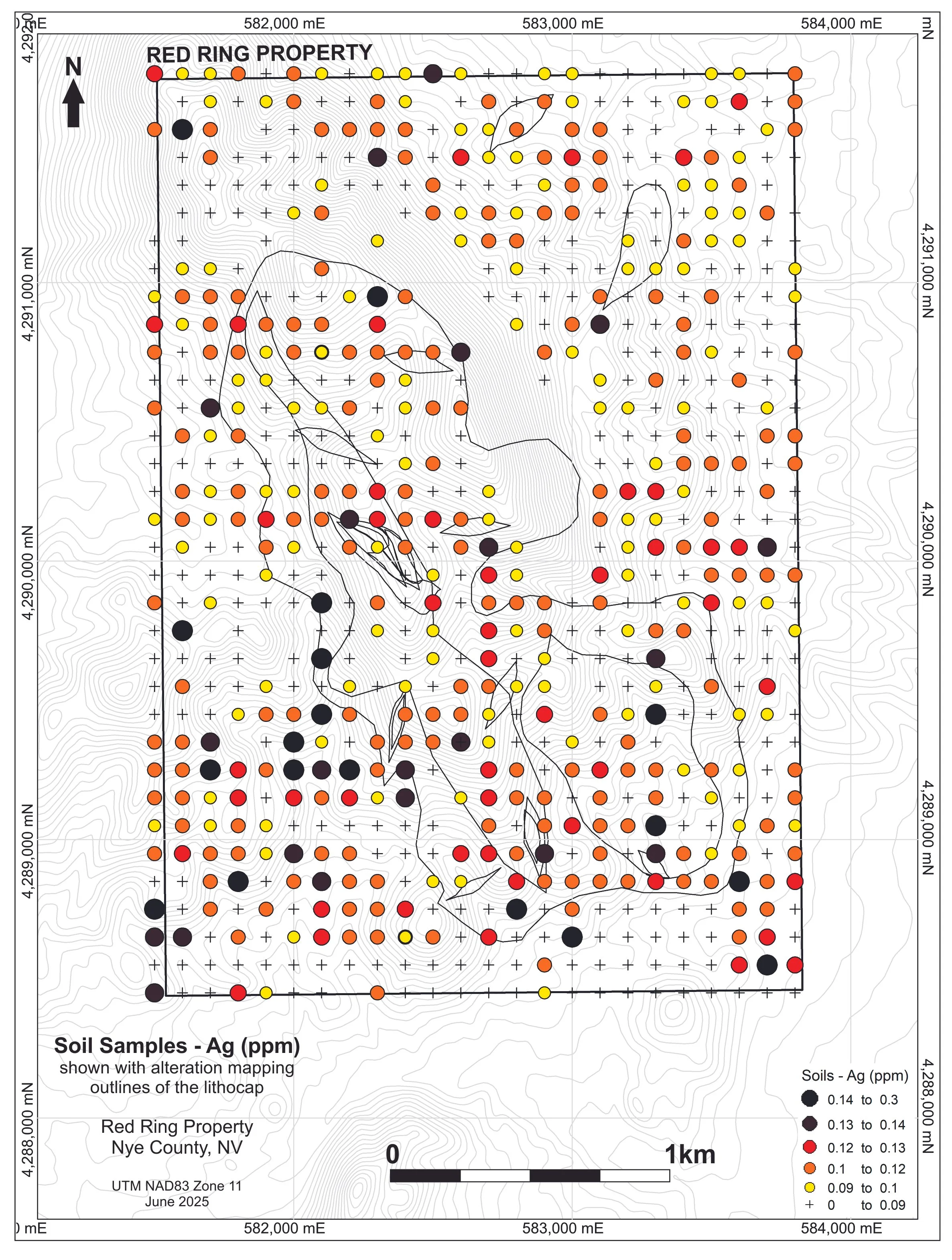

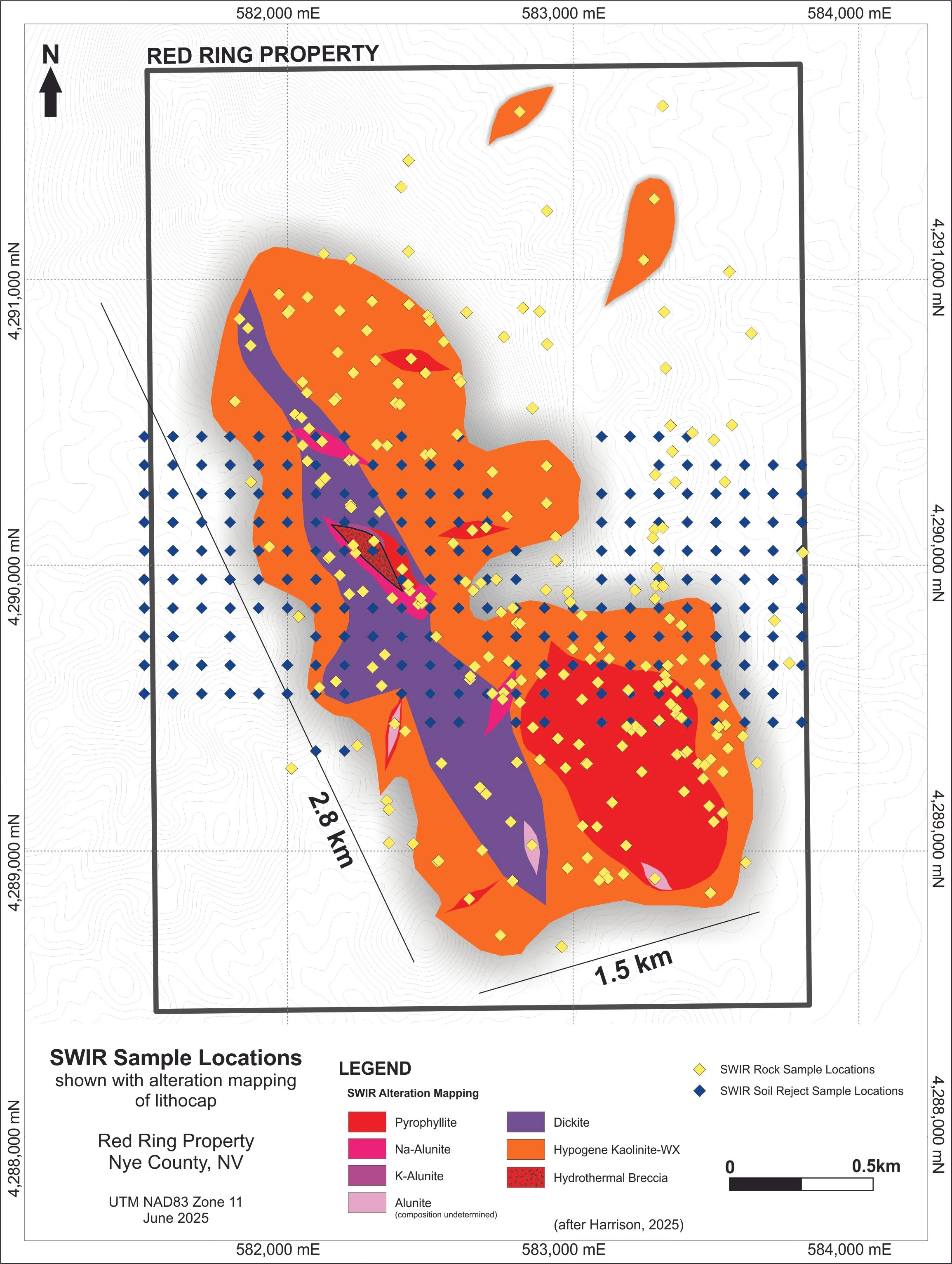

Exploration activities carried out on the Property by Almadex Minerals commenced in 2023 and have included rock and soil sampling, an airborne magnetic survey by unmanned aerial vehicle (UAV), geological mapping, and alteration mapping utilizing a Terraspec® instrument. To date, a total of 78 rock samples and 740 soil samples have been collected, and 77.8 line-kms of UAV magnetics have been completed. Spectral analysis was performed on 243 rock samples and 216 soil sample coarse rejects to characterize hydrothermal alteration mineral assemblages throughout the Property. Preliminary rock sampling returned high values of pathfinder trace elements typically associated with the lithocap alteration identified. Soil sampling conducted in 2024 also highlighted areas of anomalous trace elements indicative of a high sulphidation environment above or near a porphyry system.
